Feature
0.00000-999999prescaler
EEPROM back up system
AUX.output +12V Max.20mA
Free power supply 165V-245V |
|
| Counter,Timer |

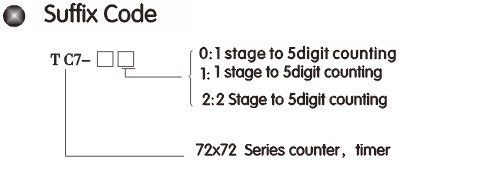

| Model code |
Preset |
Max.countting |
Input voltage |
Counting cps |
| TC7-60s |
no |
999999(6位) |
5V-30V |
300/1K/5K |
| TC7-61s |
1Stage |
999999(6位) |
5V-30V |
300/1K/5K |
| TC7-62s |
2Stage |
999999(6位) |
5V-30V |
300/1K/5K |
|
| Specification |
| Counting mode |
UP/DOW/U-D |
| C.P.S |
300cps/1kcps/5kcps |
| Input Level |
5.5V≤H≤30V |
| Display |
Red LED(14.2mmH) |
| Operaring Temp. |
0-50 |
| Power supply |
165V-245V |
| Power consumption |
≤3.5VA |
| Dielectic Strength |
Ac 1500V 1min |
| Issulation Res. |
DC 500V≥100MW |
| Relay volume |
250V/2A |
|
| |
 |
 |
|
|
